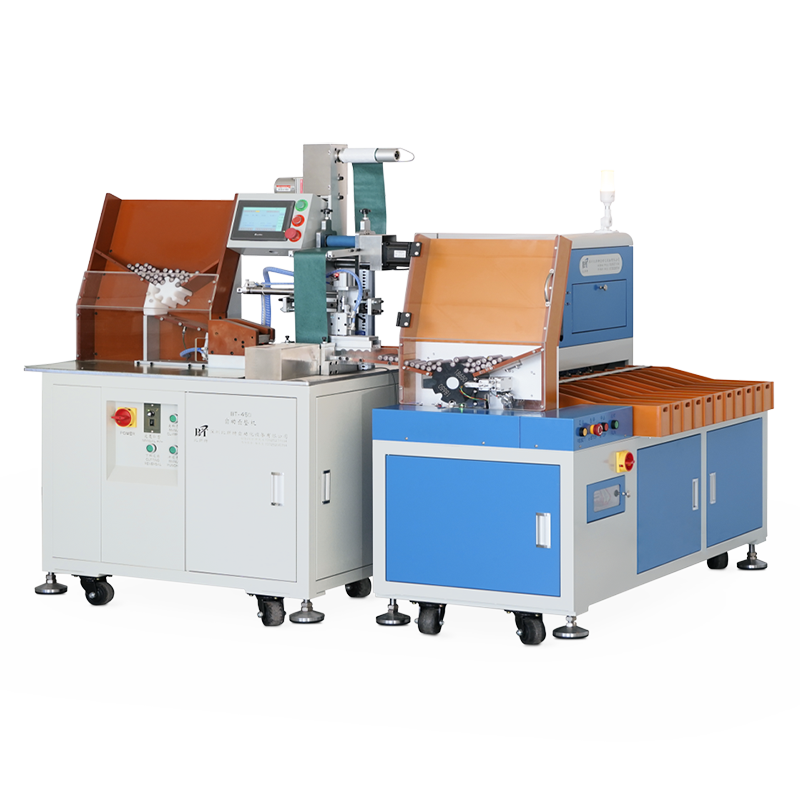

BT-450+1810B Automatic Face Pad scanning and Sorting machine
2025-11-20 10:50:17
Product features：
Main function
Paste a gasket of cylindrical insulating material on the positive electrode ofthe battery cellVoltage intemal resistance test of cylindrical cellAutomatically divide according to the set voltage intemal resistance value
Product characteristics
The in sulating highland barley paper uses the roll material, reduces the waste,saves the cost
The double manipulator takes and puts the battery, guarantees thebattery to transfer freely from the channel normally
It can save Excel tables and supports reading or uploading test data
Main function
Paste a gasket of cylindrical insulating material on the positive electrode ofthe battery cellVoltage intemal resistance test of cylindrical cellAutomatically divide according to the set voltage intemal resistance value
Product characteristics
The in sulating highland barley paper uses the roll material, reduces the waste,saves the cost
The double manipulator takes and puts the battery, guarantees thebattery to transfer freely from the channel normally
It can save Excel tables and supports reading or uploading test data
Product parameters
| Power | AC220V 50/60HZ 3.0KW | Control device | PLCplus Industial Control Computer | |
| Ar pressure | 0.4-0.8Mpa | Run power | Stepper/servo motor | |
| Qustomizable cel mocel | 267892589519892078698 | Productivity | About 400oPcs cells/hour | |
Suitable forhighland barley paper | 0MApisarmnE 1M meroCa7cdetoCa 3582 | Votage | 0.00000V-6.0000V | |
Suitable for highland barey paper thickness | 0.1MM-0.3MM | Intemal resistance | 000.00mΩ-99.99mΩ | |
| Pad Power | Vaniable -frequency motor | Optional Gear | 8-16个OK档， 一个NG档 | |
| Control Devices | Test Data | It can Save Excel tables and suppots readng or uploadng test data | ||
| Equipment dimensions | L1900MM*W1500MM*H1600MM | Communication Interface | RS4851232TCP | |
| Weight | About 430KG | Test method | 4-wire system | |
